SNOM Telefoni DECT
00004607 - M30 DECT handset for DoubleCell M400 e M900. B/W screen, 22 hours in

Descrizione

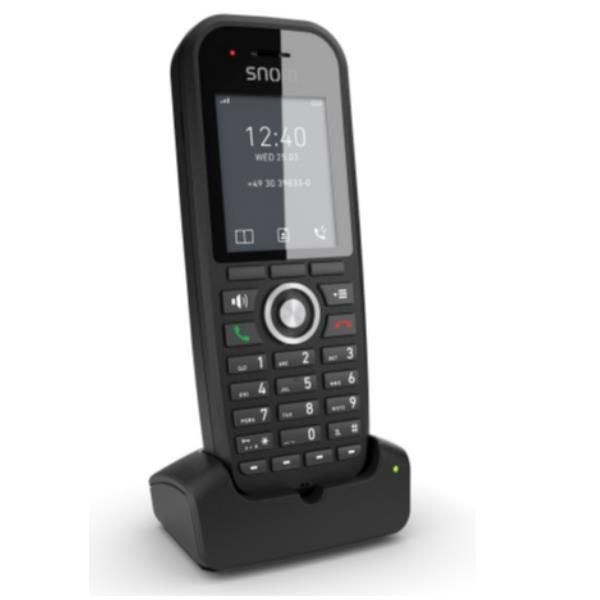

Snom M30 DECT handset for DoubleCell M400 e M900. B/W screen, 22 hours in conversation, rugged, integrated belt clip

L'M30 è dotato di un ampio display a colori e si adatta perfettamente alla nostra linea di telefoni professionali. Combina una qualità audio cristallina con funzionalità di chiamata essenziali e funzioni aziendali tipiche come l'attesa o l'inoltro.

La sua potente batteria consente fino a 22 ore di conversazione o fino a due settimane in stand-by: non perderai nemmeno una chiamata! Quattro tasti aggiuntivi sono facilmente configurabili per la selezione rapida e i numeri di contatto locali che possono essere chiamati con il semplice tocco del tasto.

È inoltre possibile programmare utili collegamenti ai menu utilizzati di frequente, ad esempio suonerie, messaggi o messaggi inviati per migliorare l'esperienza dell'utente. Una stazione base M400 con un massimo di venti telefoni M30 può gestire dieci chiamate telefoniche SIP parallele.

     Compatibile multicella
     Tastiera retroilluminata
     Tempo di attesa lungo
     Directory
     Aggiornamenti OTA
     Clip da cintura

Basics

Colour black

Drop tested up to 2 m

Product numbers

M30 | DECT handset | EU & UK | PN 00004607

Dimensions and weight

Dimensions (L x W x H, approx.)

• 128 mm x 53 mm x 25 mm

Weight (approx.)

• Handset: 82 g
• Battery & belt clip: 30 g

Display and indicators

Display

• TFT liquid crystal display (LCD), highcolour, backlit
• 2" (51 mm) display size (diagonal)
• Resolution 176 x 220 pixel

LED indicators

• 1 tricolour LED for missed calls / new voice messages, low battery

Keypad and function keys??????

28 hard keys in total

Standard ITU telephone keypad: 12 keys with star and pound/hash key, backlit

5-way navigation key

3 context-sensitive function keys

4 programmable line / function keys

4 dedicated audio keys

• Mute (navigation key: left), Speakerphone, Volume + (navigation key: up), Volume - (navigation key: down)

3 dedicated function keys

• Offhook, Onhook, Menu

Related features

• Keyboard lock

Audio devices and features

Speakerphone mode

• HD audio
• Full duplex

Audio codecs

• G.711 (A-law, µ-law), G.722, G.726

Related features

• Built-in assignable ringtones
• Hearing aid compatible (HAC)

DECT technology and features

Standard: DECT1

• Compatible with Snom DECT multicell systems
• Antenna diversity (2 internal omni-directional antennas for better transmission and reception)
• Authentication/encryption of base and handset
• Wideband audio

Frequency band

• Europe: 1,880 - 1,900 MHz
• Auto-sensing

Output power

• Europe: less than 250 mW

Coverage

• Up to 50 m indoor range / 300 m outdoor range

Related features

• Software upgrade over the air (SUOTA)
• Auto registration when not registered
• Date and time synchronization from base station

Interfaces and connections

M30 charging cradle power options

• USB powering 5 V / 1 A
• Power adapter: 100 - 240 V AC / 50 - 60 Hz / 300 mA | 5 V DC / 1 A

M30 handset power options

• Removable, rechargable 3.7 V / 1,100 mAh / 4.1 W (Lithium-ion) battery, up to 350 h standby time, up to 22 h narrowband talk time, up to 14 h wideband talk time

Wireless interfaces

• DECT1

User interfaces and setup

Configuration and setup via menu-driven phone user interface (PUI)

• Languages

Related features

• XML Minibrowser support for Snom DECT multicell systems

Directory support and call features????

Up to 2 simultaneous calls

Directory support

• LDAP (server-based directory)
• Local directory with up to 100 entries
• Central directory on the base station

Outgoing call features

• Speed dialling via keypad: 8 numbers
• Redial (via dialed calls list)
• Caller identification (CLIP)
• Calling Line Identification Restriction (CLIR)

Incoming call features

• Call waiting/swapping
• Auto answer
• Call diversion
• Do Not Disturb (DND) mode

Connected call features

• Mute microphone
• Hold
• Blind call transfer
• Attended call transfer
• 3-way local conferencing

Related features

• Call history lists of 50 missed, received, dialed calls
• Voice message waiting notification
• Notification of missed calls

Environmental conditions

Operating ambient temperature: 0 °C to 55 °C

Charging condition: 5 °C to 45 °C

Package contents

M30 unit

Battery

Charging cradle

Power adapter

Quick Installation Guide (QIG)

Type approval and standards conformance

Information technology equipment - Safety 60950-1: 2005

WEEE 2012/19/EU | 2006/66/EC

Accessories

00004426 | M900 | DECT multicell base station | EU & UK

00004587 | M400 | DECT dual-cell base station | EU & UK

1 DECT devices manufactured for the United States and Canada are marketed as DECT 6.0

?

Scheda Tecnica

Generale

Display Monocromatico

Attacco cuffia Sì

Messaggistica Sì

Management Centralizzato Sì

Colore Nero

Soluzioni

UCC Sì
