00004587 - M400 DECT-IP Doublecell: Up to 10 parallel calls, Repeater support M6

Descrizione

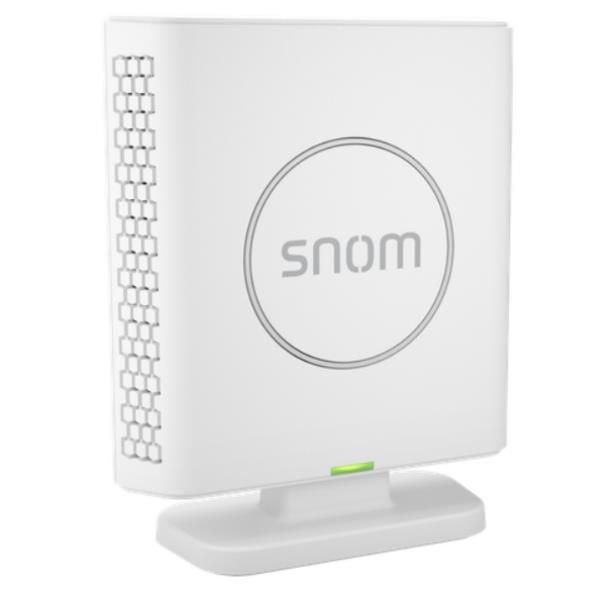

Snom M400 DECT-IP Doublecell: Up to 10 parallel calls, Repeater support M6

La stazione base DECT M400 a doppia cella offre l'intera gamma di funzioni di telefonia aziendale. In un'installazione a doppia cella, garantisce disponibilità ininterrotta, trasferimento senza interruzioni e può essere utilizzato con tutti gli endpoint multicella Snom. L'M400 fornisce una catena automatizzata a doppia cella alla rete locale per potenziare la soluzione di comunicazione e dispone di un potente gestore di chiamate DECT per un massimo di 20 chiamate parallele con un massimo di 40 account SIP in una configurazione a doppia cella.

Per i partner Cloud e VoIP PBX, l'M400 offre manutenibilità remota e implementazione zero-touch. L'M400 è conforme ai più recenti standard di crittografia e condivide la stessa architettura del sistema multicella M900 per gli ultimi aggiornamenti software e di sicurezza.

     Scalabilità a doppia cella
     Power over Ethernet (PoE)
     Sicurezza (TLS e SRTP)
     Aggiornamenti OTA
     Directory

?Basics:

Colour white

Wall mountable

Product numbers

M400 | DECT dual-cell base station | EU & UK | PN 00004587

M400 | DECT dual-cell base station | Americas | PN 00004588

Dimensions and weight:

Dimensions (H x W x D, approx.)

• 112 mm x 90 mm x 36 mm

Weight (approx.)

• 170 g

Indicators and keys:

1 multicolour LED

1 dedicated function key Reset

Audio codecs and features:

Audio codecs

• G.711 (A-law, µ-law), G.722, G.726, G.729

Related features

• Codec negotiation, codec switching

Interfaces and connections

M400 power options

• Power over Ethernet (PoE), IEEE 802.3af, class 2

Wired interfaces

• RJ45-8P8C 10/100 Mbit Ethernet port

Wireless interfaces

• DECT

User interfaces and setup

Configuration and setup via menu-driven web user interface (WUI)

Automatic configuration via provisioning

• Loading of settings and firmware via HTTP / HTTPS / TFTP
• Secure provisioning with preinstalled certificate
• Cloud Zero-Touch Provisioning

Localization

• Timezone, Dial tone

Diagnostic

• DECT messages, alarms, location

Related features

• XML browser
• Automatic dual-cell chain setup
• Compatible handset feature RSSI tool, no additional measurement equipment needed

Interoperability

Certified VoIP partner

Environmental conditions

Operating ambient temperature: -10 °C to 50 °C (14 °F to 122 °F)

Package contents

DECT base station unit

Quick Installation Guide (QIG)

Information sheets (security, standards)

1 DECT devices manufactured for the United States and Canada are marketed as DECT 6.0


Directory support and call features

• Directory support
  • LDAP (server-based directory)
  • XML phonebook support
• Related features
  • List of registered mobile handsets, repeaters, location gateways

DECT technology and features

• Standard: DECT1
  • Antenna diversity (2 internal omni-directional antennas for better transmission and reception)
  • Authentication/encryption of base and handset
  • Seamless handover and roaming using DECT sychronisation
  • Wideband audio
• Frequency band
  • Europe: 1,880 - 1,900 MHz
  • USA: 1,920 - 1,930 MHz
• Output power
  • Europe: less than 250 mW
  • USA: less than 100 mW
  • Level (dbm): 14, 17, 20, 24
• Coverage
  • Up to 50 m indoor range / 300 m outdoor range
• Handsets
  • Up to 20 per base station / 40 per dual-cell installation
• Repeaters
  • Up to 6 per base station / 12 per dual-cell installation
• Calls in single-cell system
  • Up to 10 narrowband calls / 5 wideband calls
• Calls in dual-cell system
  • Up to 20 narrowband calls / 10 wideband calls
• Related features
  • Software upgrade over the air (SUOTA)

Networking technologies and protocols

• Network technologies
  • VLAN (IEEE 802.1Q)
• Secure VoIP protocols
  • SIPS (SIP over TLS), SRTP (RFC 3711)
• Network protocols
  • DHCP, NTP, LLDP-MED, HTTP
• Secure network protocols
  • TLS V1.2, HTTPS
• Quality of Service (QoS)
  • ToS

Type approval and standards conformance

• Information technology equipment - Safety 62368-1
• WEEE 2012/19/EU
• FCC (ID T7HX9431)

Accessories

• 00004607 | M30 | DECT handset | EU & UK
• 00004423 | M70 | DECT handset
• 00004424 | M80 | DECT handset
• 00004189 | M85 | DECT handset
• 00004425 | M90 | DECT handset

?

Scheda Tecnica

Generale

Tipo di sistema IP-Dect

Ambiente Interno

Numero canali 2

Antenna Integrata Sì

Soluzioni

UCC Sì
