Qnap NAS senza HD integrato
TS-h765eU-8G

Descrizione

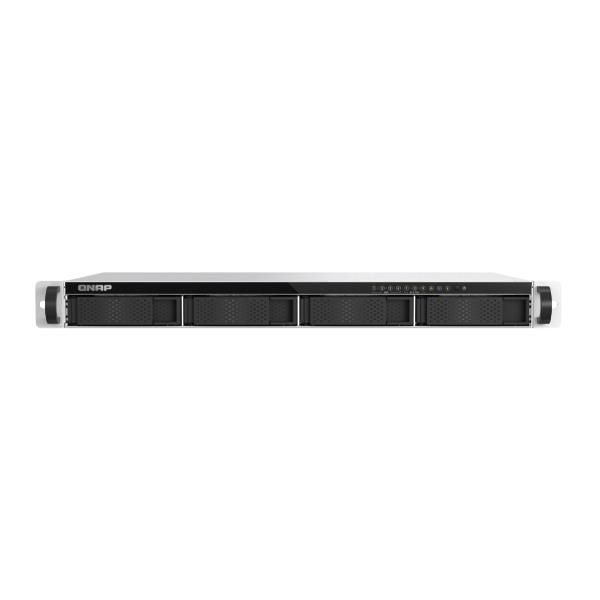

TS-h765eU
Compact 1U short-depth rackmount NAS, with E1.S/M.2 PCIe NVMe slots and 10GbE expandability

The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.

Space-saving
The 1U short depth of only 292.1mm (12 inches) is suited for small media cabinets or wall-mount network racks.

The short rail kit Rail-S01 is recommended (optional purchase).

DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.

Expand to two 10GbE ports
Flexibly upgrade to high-speed 10GbE by installing two E1.S to 10GbE network modules (QXG-ES10G1T).

Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.

Easy storage expansion via USB
Connect a QNAP's short-depth USB JBOD TR-004U to the TS-h765eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).

Long-term supply
The TS-h765eU will be available and supported by QNAP for an extended period, up to 2031.

Scheda Tecnica

Caratteristiche tecniche

Bus per Hard Disk SATA

Posizionamento Professional

Supporto RAID Sì

Supporto IP IPv4/IPv6

Tipo File Systems No especifica

Tipo Cpu Intel

Memoria Flash 8.000 MB

Memoria DDRAM 8.000 MB

Numero massimo utenti FTP 1.024

ConnettivitÀ

Velocità LAN 100/1000/2500 MB

Numero porte USB 2

Numero porte LAN 2

Connettori porte LAN Gigabit Ethernet

Conformità LAN

2 porte 2.5 Gigabit Ethernet Port (2.5G/1G/100M/10M)

Alimentazione

Alimentatore ridondato No

Power Supply AC

Power Supply Tensione 100/240 V

Power Supply Frequenza 50/60 Hz

Power Supply Potenza Assorbita 150 W

Caratteristiche fisiche

Formato Chassis Rack

Colore Chassis Nero

Larghezza massima 430 mm

Profondità massima 292, 1 mm

Peso 4.510 gr

Led

Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD 1~3

Protocolli

Iscsi Sì

AFP Sì

Cifs Sì

SMB Sì

NFS Sì

Http Sì

Https Sì

FTP Sì

Ftps Sì

Rsync Sì

Storage

Numero Bay Totali 7

Capacità Totale Dischi Inclusi 0  GB

Numero Dischi Inclusi 0

Unità di memoria SATA

Supporto Enclosures Sì

Numero Enclosures supportati

Drive Bay
4 x 3.5-inch SATA 6Gb/s, 3Gb/s
3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots)

Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
E1.S NVMe PCIe SSDs
M.2 2280 NVMe PCIe SSDs

Dimensione degli slot dei dischi 2.5''/3.5''

Numero Enclosures supportati

Drive Bay
4 x 3.5-inch SATA 6Gb/s, 3Gb/s
3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots)

Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
E1.S NVMe PCIe SSDs
M.2 2280 NVMe PCIe SSDs

Livelli raid

RAID 1 (Mirroring) Sì

Raid 5 Sì

Raid 6 Sì

Jbod Sì

RAID 0 (Striping) Sì

Estensioni wireless

Estensioni wireless No

Wireless Security No

ConformitÀ

Dichiarazione di Conformità

CE

Confezione

Cavi Inclusi

.

Software

.

Manuali

.
