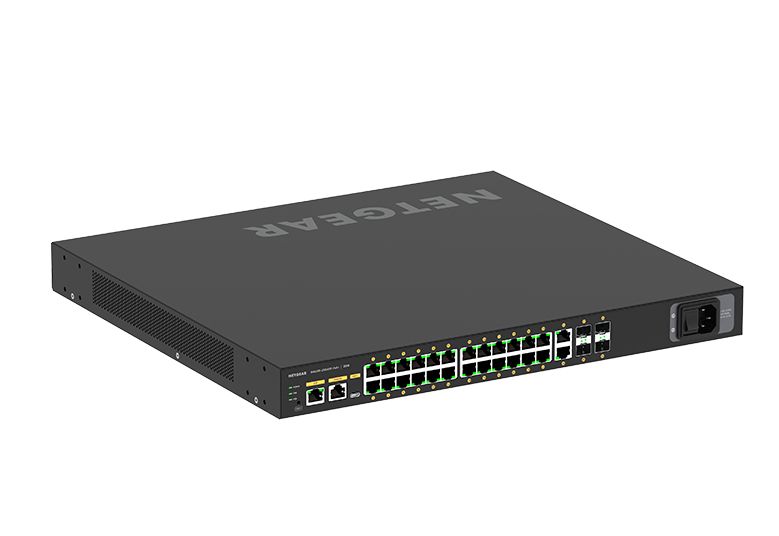

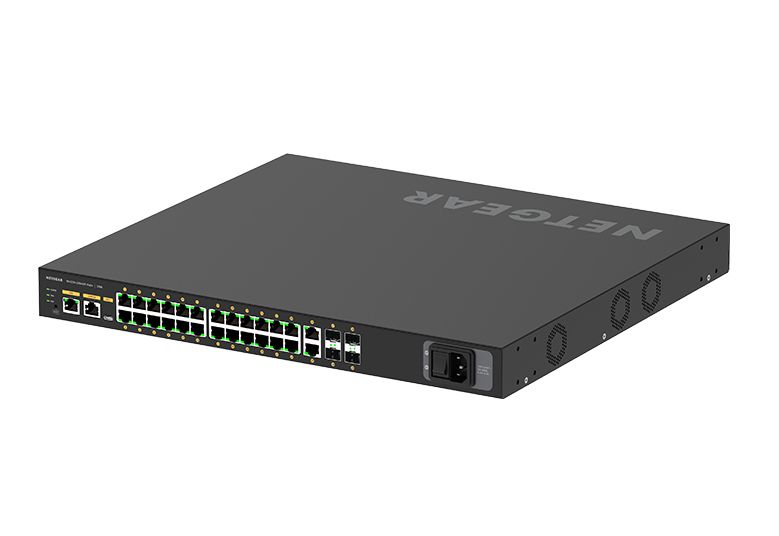

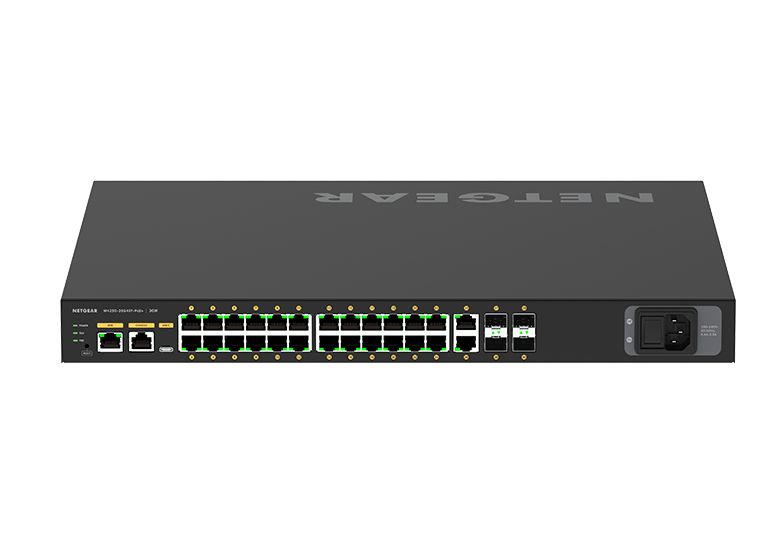

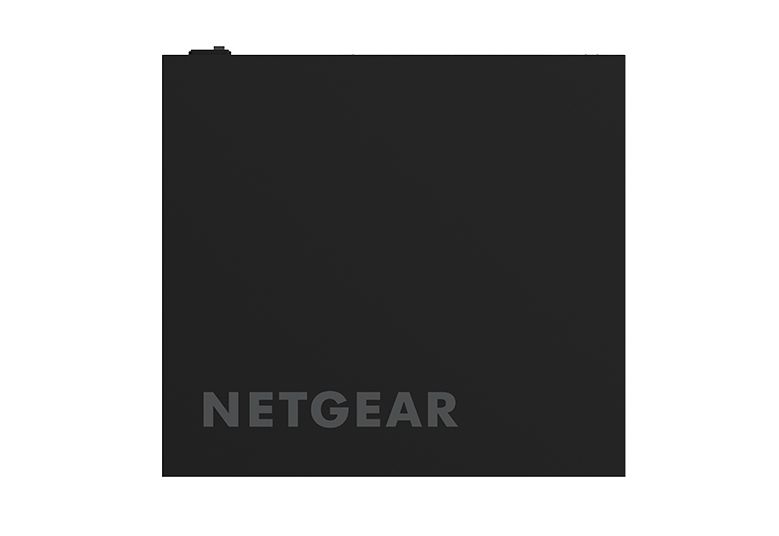

Netgear Switch Stand-Alone
AV LINE M4250-26G4XF-POE+ 24X1G POE+ 4XSFP+ MANAGED 480W

24-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget

? 2-port 10/100/1000BASE-T (RJ45)

? 4-port 1000/10GBASE-X (SFP+)

? 132 Gbps non-blocking fabric across 30 ports

? Out-of-band 1G Ethernet management port

? USB-C and RJ45 RS232 console ports and USB-A storage port

? Front black display panel and all ports in the back

? Possible reversed mounting with ports in the front

? Rack-mounting standard brackets

? Longer brackets for recessed mounting (2 inches / 5 cm)

? Threaded hole in front (1xM10) for clamps

? Threaded holes on the bottom (4xM5) for 50x100mm VESA plates

? Selectable fan modes for fanless, quiet, or cool operation

? Dimensions (WxDxH): 440 x 43.2 x 400 mm

? Weight: 5.45Kg (12.02lb)

Caratteristiche tecniche

Power over Ethernet (PoE) Sì

Gestione Layer 2+

Supporto Routing (Layer 3) No

Nr. porte PoE 24

Vlan supportate 4.093

Industriale No

Stackable No

PoE Budget 480 W

Attacco su barra DIN No

Quality Of Service (QOS) Sì

Modalità Stacking No

Dimensioni tabella MAC 16.000

Standard PoE supportati 30W

Altre caratteristiche tecniche

24-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
2-port 10/100/1000BASE-T (RJ45)
4-port 1000/10GBASE-X (SFP+)
132 Gbps non-blocking fabric across 30 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port
Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for fanless, quiet, or cool operation
Dimensions (WxDxH): 440 x 43.2 x 400 mm
Weight: 5.45Kg (12.02lb)

Nr. slot 0

Altre caratteristiche tecniche

24-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
2-port 10/100/1000BASE-T (RJ45)
4-port 1000/10GBASE-X (SFP+)
132 Gbps non-blocking fabric across 30 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port
Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for fanless, quiet, or cool operation
Dimensions (WxDxH): 440 x 43.2 x 400 mm
Weight: 5.45Kg (12.02lb)

Caratteristiche fisiche

Rack-Mountable Sì

Larghezza 440 mm

Nr. unità rack 1

Profondità 400 mm

Altezza 44 mm

Peso 545 gr

Altre caratteristiche fisiche

24-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
2-port 10/100/1000BASE-T (RJ45)
4-port 1000/10GBASE-X (SFP+)
132 Gbps non-blocking fabric across 30 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port
Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for fanless, quiet, or cool operation
Dimensions (WxDxH): 440 x 43.2 x 400 mm
Weight: 5.45Kg (12.02lb)

Alimentazione

Power Supply AC

Alimentatore incluso Sì

Alimentazione ridondata No

Consumo energetico 614 W

Tipologia di alimentazione ridondata Nessuna ridondanza di alimentazione

ConnettivitÀ

Nr. porte LAN 30 N

Tipo e velocità porte LAN RJ-45 10/100/1000

Nr. porte Uplink 4

Tipo e velocità porte Uplink SFP/SFP+

Porta Console Sì

Altre informazioni sulla connettività

24-port 10/100/1000BASE-T (RJ45) PoE+ with 480W PoE budget
2-port 10/100/1000BASE-T (RJ45)
4-port 1000/10GBASE-X (SFP+)
132 Gbps non-blocking fabric across 30 ports
Out-of-band 1G Ethernet management port
USB-C and RJ45 RS232 console ports and USB-A storage port
Front black display panel and all ports in the back
Possible reversed mounting with ports in the front
Rack-mounting standard brackets
Longer brackets for recessed mounting (2 inches / 5 cm)
Threaded hole in front (1xM10) for clamps
Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
Selectable fan modes for fanless, quiet, or cool operation
Dimensions (WxDxH): 440 x 43.2 x 400 mm
Weight: 5.45Kg (12.02lb)
