LEVELONE

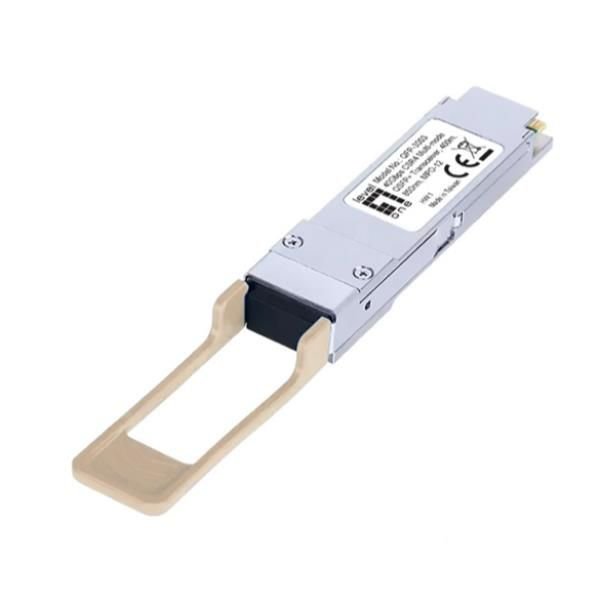

QFP-3003 - TRANSCEIVER QSFP+ multimodale CSR4 da 40 Gbps, 400m, 850nm, MPO-12

Descrizione

The LevelOne QFP-3003 is a 40Gbps CSR4 Multi-mode QSFP+ Transceiver engineered for high-speed, reliable data transmission. It delivers an aggregate data rate of 40 Gbps through four 10 Gbps lanes and supports 40GBASE-CSR4 multi-mode fiber links up to 400 meters over OM4 MMF.

Featuring a VCSEL transmitter and PIN-TIA photodetector with a center wavelength of 850 nm, this transceiver uses an MPO-12 optical connector for efficient fiber connectivity. The module is hot-swappable and fully compliant with QSFP+ Multi-Sourcing Agreement (MSA) standards, ensuring easy deployment and maintenance.

Additionally, it supports Digital Diagnostics Monitoring (DDM) for real-time monitoring of device status and performance. Designed to operate within a commercial temperature range of 0°C to 70°C, the QFP-3003 is ideal for enterprise and data center networking environments.

Scheda Tecnica

Specifiche

Colore primario Argento

Tipologia generica Transceiver

Fonte (1) 61TRF-1

Tipologia specifica QSFP+

Funzione Transceiver

Materiale Metallo

Altre informazioni

DDM (Digital Diagnostics Monitoring)
Hot-swappable
