Gigabyte Schede grafiche PCI-Expres

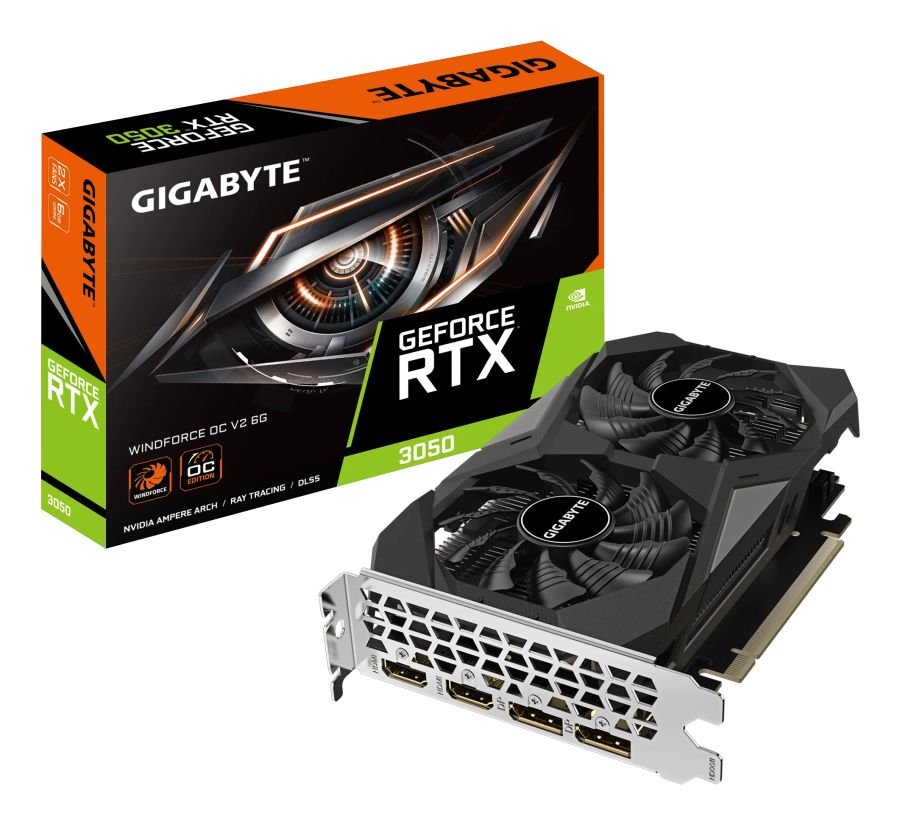

GV-N3050WF2OCV2-6GD VGA RTX3050 WINDFORCE 6GB HDMI/DP GDDR6

Descrizione

Schede grafiche PCI-Expres Gigabyte  GV-N3050WF2OCV2-6GD VGA RTX3050 WINDFORCE 6GB HDMI/DP GDDR6 9VN305WO6200G10

KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX? 3050
Integrated with 6GB GDDR6 96-bit memory interface
WINDFORCE cooling system

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Scheda Tecnica

Processore

Processore grafico / fornitore NVIDIA

Processore grafico GeForce RTX 3050

Risoluzione massima 7680 x 4320 Pixel

CUDA Sì

Frequenza del processore 1477 MHz

Tecnologia di processo parallela Non supportato

CUDA cores 2304

Numero massimo di display per videocard 4

Memoria

Memoria Grafica Dedicata 6 GB

Tipo memoria adattatore grafico GDDR6

Ampiezza dati 96 bit

Velocità memoria 14000 MHz

Connettività

Tipo interfaccia PCI Express 4.0

Quantità porte HDMI 2

Quantità DisplayPorts 2

Versione HDMI 2.1

versione DisplayPort 1.4

Prestazione

Sintonizzatore TV integrato No

Versione DirectX 12 Ultimate

Versione OpenGL 4.6

NVIDIA G-SYNC Sì

Design

Tipo di raffreddamento Attivo

Tecnologia di raffreddamento GIGABYTE WINDFORCE 2X

Numero di ventole 2 ventola(e)

Colore del prodotto Nero, Argento

Gestione energetica

Minima alimentazione di corrente 300 W

Requisiti di sistema

Sistema operativo Windows supportato Windows 10 x64, Windows 11 x64

Dimensioni e peso

Lunghezza 191 mm

Profondità 111 mm

Altezza 36 mm

Dati su imballaggio

Tipo di imballo Scatola

Contenuto dell'imballo

Guida utente Sì
