DRAKA PRYSMIAN GROUP Cavo Ottico
CAVO 12FO OM4 ACCIAIO B2CA PH120 60103718
CAVO OTTICO LOOSE FIRERESISTANT 12 FIBRE 50/125 OM4 PER INTERNO/ESTERNO ARMATURA ACCIAO CORRUGATO 3000N LSHF B2CA-S1A-D1-A1 PH120 ARANCIO
- Classe fibra OM4
- Numero Fibre 12
- Armatura Acciaio corrugato
- Euroclass/Classificazione CPR B2CA
a partire da: 6,98 € info
36943 opinioni Descrizione

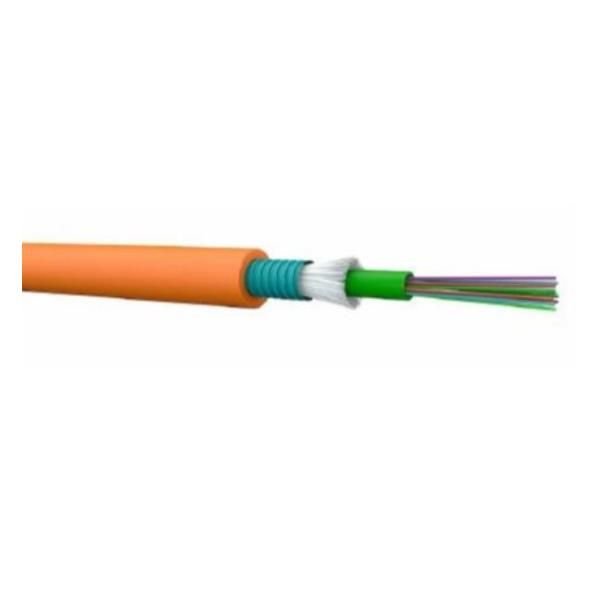

Cavo Ottico DRAKA PRYSMIAN GROUP CAVO 12FO OM4 ACCIAIO B2CA PH120 60103718 R02-12-OM4fo cable with central loose tube filled with gel for structured cabling.
The cable is UV-resistant, with steel tape armoring, longitudinally water blocked and rodent-protected with a tensile strength of 3.0kN.
The jacket is made of halogen-free, flame-retardant material according to IEC60332-1; IEC60332-3-24; IEC60754-1/2; IEC61034;
EN50399 for use in public buildings with high personal risk and higher Euro fire class B2ca s1a d1 a1.
Fire resistant cable Circuit Integrity according to IEC 60331-25 and EN 50200 PH120.
Use outdoors for duct installation and as a flame-retardant cable indoors.
The fiber optic cable exceeds the requirements of EN50173-1, ISO/IEC11801 and EN/IEC60794-6.
Scheda Tecnica
Generale
Tipo di cavo Loose monotubo
Tipo fibra Multi mode
Classe fibra OM4
Utilizzo INT/EST
Nucleo/Rivestimento 50/125
Numero Fibre 12
Armatura Acciaio corrugato
Materiale della guaina LSHF / LSZH / LS0H
Euroclass/Classificazione CPR B2ca
Colore Arancio
