DRAKA PRYSMIAN GROUP Cavo Ottico
CAVO 12FO OM3 DIEL.INT/EST.B2CA ACQUA ACQ 60087031

Descrizione

GENERAL INFO
2000N, Ind/Out metal-free, Class Cca-s1a-d1-a1, gel-filled, water-blocked central tube cable with up to 24 fibres, glass yarn dielectric
armouring and FireRes® sheath. DIN/VDE: U-DQ(ZN)BH

CABLE FEATURES

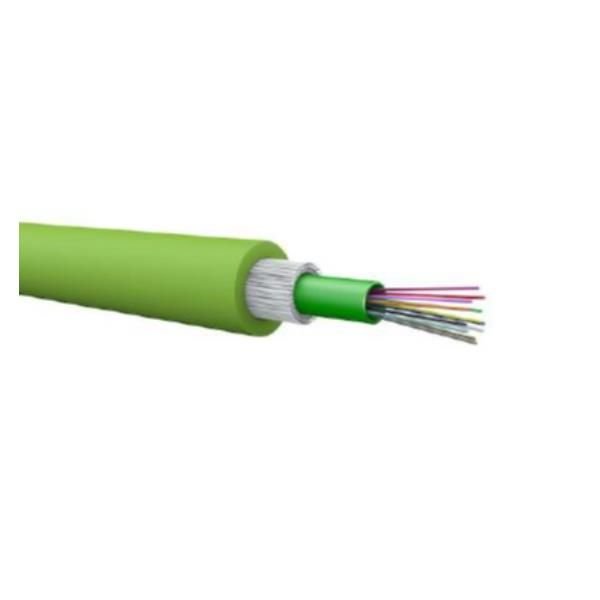

Fibre optic cable with central loose tube filled with gel for structured cabling.
The cable is metal-free, longitudinally water blocked with a tensile strength of 2.0kN and certain degree of roden-proof protection.
The jacket is made of halogen-free, flame-retardant material according to IEC60332-1-2; IEC60332-3-24; IEC60754-2; IEC61034
for use in public buildings with a high personal risk according to Euro fire class Cca s1a d1 a1.
Use outdoors and in ducts, and as a flame-retardant cable indoors.
The fiber optic cable exceeds the requirements of EN 50173-1, ISO/IEC 11801, EN/IEC 60794-1 and EN/IEC 60794-6-10.

Scheda Tecnica

Generale

Tipo di cavo Loose monotubo

Tipo fibra Multi mode

Classe fibra OM3

Utilizzo INT/EST

Nucleo/Rivestimento 50/125

Numero Fibre 12

Armatura Dielettrico

Materiale della guaina LSHF / LSZH / LS0H

Euroclass/Classificazione CPR Cca

Colore Aqua
