DataLogic Lettori Laser
DSE0421, DECODED 2D SCAN MODULE USB INTERFACE WITH MICRO MINIMUM ORDER QUANTITY

Descrizione

DECODED 2D SCAN MODULE DSE0421 USB INTERFACE WITH MICRO USB MINIMUM ORDER QUANTITY --> 16 UNITS

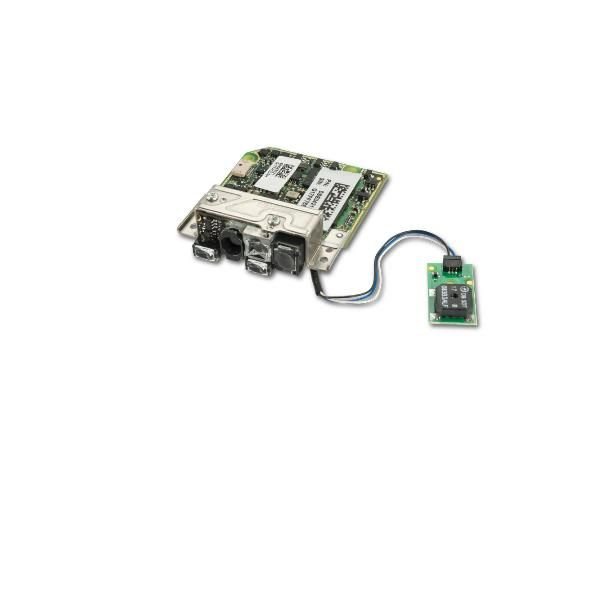

The DSE04XX Series is the decoded versions of the DE2011-DL ultracompact high performance 2D imager engine. It is comprised of the DE2011-DL and a decoder board. The scan engines feature an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance.

The scan engines feature an outstanding depth-of-field, a large field-of-view, high motion tolerance, snappy reading, and excellent decoding performance on poorly printed codes or bar codes displayed on mobile devices and computer screens. It is capable of reading all common 1D and 2D barcodes.

Customers can also choose to add a beeper and/or Datalogic?s distinctive ?Green Spot? technology for good-read feedback. This is particularly useful in noisy environments. Additionally, the scan engines feature a steady white illumination which is pleasant to the user?s eyes.

The compact size of these scan engines allows turnkey integration into a wide array of application systems requiring barcodes to be read. These include customer-facing kiosks, medical test equipment, or small-footprint sorting stations for merchandise or documents.

Scheda Tecnica

Generale

Tipologia Miniature 2D Imagers

Colore Grigio

Schermo LCD No

Decoding

Tipo sensore Area-Imaging Scanner

Tipologia di codici letti 1D / 2D

ConnettivitÀ

Cordless No

Interfacce supportate USB

Hardware

RFID No

Healthcare No

Condizioni ambientali di funzionamento

IP non disponibile

Dimensioni

Altezza massima 50 mm

Larghezza massima 50 mm

Profondità massima 10 mm

Peso 25 gr
