Alcatel Lucent Access Point Gestiti (Controllati)
OAW-AP1361-RW OmniAccess Stellar Outdoor Dual radio 5GHz 4x4:4/2.4GHz2x2:2 802.1

Descrizione

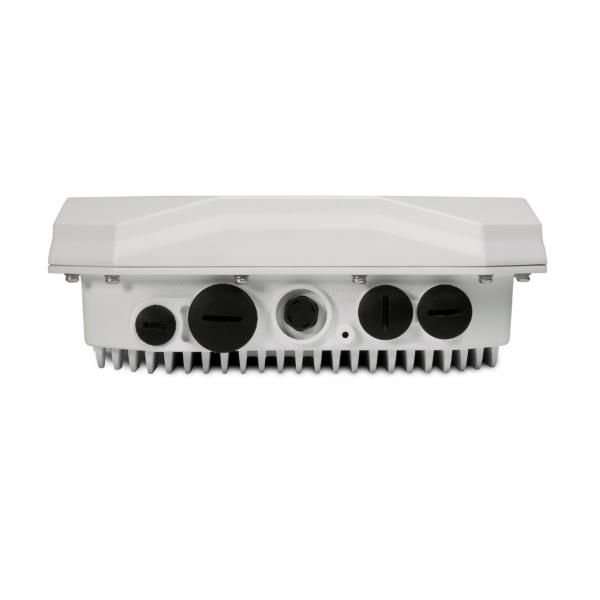

OAW-AP1361-RW - OmniAccess Stellar Outdoor AP1361. Dual radio 5GHz 4x4:4 / 2.4GHz 2x2:2 802.11ax, integrated omni. 1x1 scanning radio and BLE radio. 2.5GbE, 1GbE, 1GbE SFP, USB, 48V DC. AP mount order seperately. Not for use in US, Egypt, Israel, Japan

Standard: Wi-Fi 6 (802.11ax)

Ports: 2 x LAN, 1 x SFP, 1 x USB

WLAN speed (max.): 2973 Mb/s

Bridging feature: Yes

Antennas: Internal

Scheda Tecnica

Caratteristiche tecniche

Posizionamento Outdoor

Possibilità di essere anche controllato Sì

Unmanaged / Autonomo No

Caratteristiche fisiche

Formato Chassis Wall/Ceiling

Colore Chassis Bianco

Altezza massima 243 mm

Larghezza massima 243 mm

Profondità massima 45 mm

Peso 2.500 Gr

Alimentazione

Power Supply DC + POE

Supporto POE 802.3af Sì

Power Supply Tensione 220 V

Power Supply Frequenza 60 Hz

Wireless

Banda di frequenza 2.4GHz & 5GHz dual band Ghz

Velocità Wireless 4804 Mbps Mbps

Wireless Security Sì

Connettore antenne opzionali N

Conformità Wireless

AP type: Outdoor, integrated three radios
Tri Radio, 5 GHz 802.11ax 4x4:4 and 2.4 GHz 802.11ax 2x2:2 and dedicated scanning radio
¬ 5 GHz: 4x4:4 up to 2.4Gbps wireless data rate to individual 4SS HE80 802.11ax client
devices. 2.4 GHz: 2x2:2 up to 573 Mbps wireless data rate to individual 2SS HE40 802.11ax
client devic-es.
Supported frequency bands (country-specific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz

ConnettivitÀ

Numero porte LAN 2 N

Velocità LAN 2.973 Mbps

Connettori porte LAN RJ-45

Conformità LAN

IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11e WMM, U-APSD
IEEE 802.11h, 802.11i, 802.11e QoS
IEEE 802.1Q (VLAN tagging)
802.11k Radio Resource Management
802.11v BSS Transition Management
802.11r Fast roaming

Porta Console No

Conformità LAN

IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11e WMM, U-APSD
IEEE 802.11h, 802.11i, 802.11e QoS
IEEE 802.1Q (VLAN tagging)
802.11k Radio Resource Management
802.11v BSS Transition Management
802.11r Fast roaming

ConformitÀ

Dichiarazione di Conformità

CB Scheme Safety, cTUVus
Wi-Fi CERTIFIED Wi-Fi 6, Enhanced Open, Passpoint®, Agile Multiband (MBO)
FCC
CE Marked
Bluetooth SIG
RoHS, REACH, WEEE
ASTM B117-07A, Salt spray testing per UL50 NEMA 4x
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
2014/53/EU Radio Equipment Directive
EN 55032
IEC/EN 60950
EN 300 328
EN 301 893
EN 301 489-1
EN 301 489-17

Confezione

Software

no

Kit e Accessori Vari

Mounting

Hang mounting for AP1361 (Mount kit needs to be ordered separately)

AP-MNT-OUT-H

OAW-AP1361 hanging down-tilt mount kit.

Pole/Wall mounting for AP1361D and AP1362 (Mount kit needs to be ordered separately)

AP-MNT-OUT

OAW-AP1361D, OAW-AP1362 and OAW-AP1251 outdoor mount kit.

Soluzioni

UCC Sì
