Alcatel Lucent

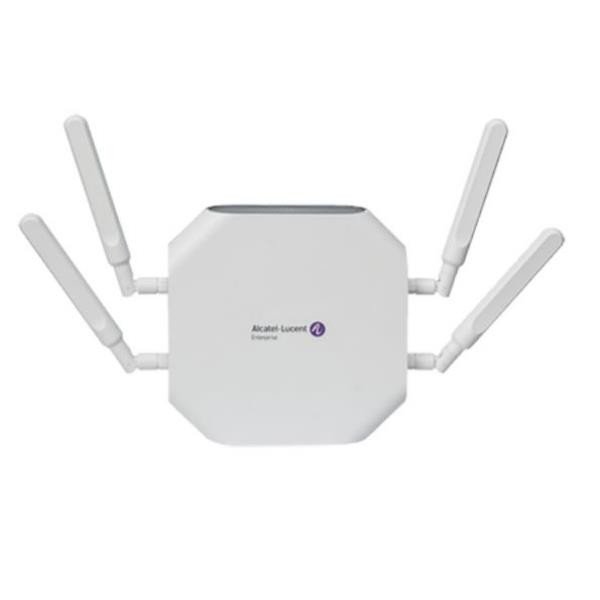

OAW-AP1322-RW OmniAccess Stellar Indoor AP1321 Dualradio 5GHz4x4:4/2.4GHz2x2:2 8

Descrizione

OAW-AP1322-RW

OmniAccess Stellar AP1322. Wi-Fi 6 Indoor AP with four radios ? Dual radio 5GHz 4x4:4 / 2.4GHz 2x2:2, dedicated scanning radio, and integrated BLE/Zigbee radio. Interfaces 2.5GbE RJ-45, 1GbE RJ-45, USB, 48V DC Power & 6x antenna connectors. AP mount kit and antennas to be ordered separate-ly. Unrestricted Regulatory Domain: Not for use in US, Egypt, Israel, Japan

Standard: Wi-Fi 6 (802.11ax)

Ports: 1 x USB, 2 x LAN

WLAN speed (max.): 2973 Mb/s

Bridging feature: Yes

Antennas: Internal

Scheda Tecnica

Caratteristiche tecniche

Posizionamento Indoor

Possibilità di essere anche controllato Sì

Unmanaged / Autonomo Sì

Caratteristiche fisiche

Formato Chassis Wall/Ceiling

Colore Chassis Bianco

Altezza massima 180 mm

Larghezza massima 180 mm

Profondità massima 36 mm

Peso 751 Gr

Alimentazione

Power Supply DC + POE

Supporto POE 802.3af Sì

Power Supply Tensione 220 V

Power Supply Frequenza 60 Hz

Wireless

Banda di frequenza 2.4GHz & 5GHz dual band Ghz

Velocità Wireless 4804 Mbps Mbps

Wireless Security Sì

Connettore antenne opzionali RP-SMA

Conformità Wireless

Antenna

AP1321: 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz
¬ Integrated omni-directional antennas with maximum antenna gain of 3.5dBi in 2.4 GHz and
3.7dBi in 5 GHz
AP1322: 2×2:2 @ 2.4GHz, 4x4:4 @ 5GHz
¬ 4 RP-SMA female external antenna connectors
¬ ANT0-ANT1 are dual band antenna connectors, ANT2-ANT3 are 5GHz antenna connectors

ConnettivitÀ

Numero porte LAN 2 N

Velocità LAN 2.900 Mbps

Connettori porte LAN RJ-45

Conformità LAN

IEEE standard

IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11e WMM, U-APSD
IEEE 802.11h, 802.11i, 802.11e QoS
IEEE 802.1Q (VLAN Tagging)
802.11k Radio Resource Management
802.11v BSS Transition Management
802.11r Fast roaming

Porta Console No

Conformità LAN

IEEE standard

IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11e WMM, U-APSD
IEEE 802.11h, 802.11i, 802.11e QoS
IEEE 802.1Q (VLAN Tagging)
802.11k Radio Resource Management
802.11v BSS Transition Management
802.11r Fast roaming

ConformitÀ

Dichiarazione di Conformità

Regulatory & certification

CB Scheme Safety, cTUVus
Wi-Fi CERTIFIED Wi-Fi 6, Enhanced Open, Passpoint®, Agile Multiband (MBO)
FCC
CE Marked
EN 60601-1-1 & EN 60601-1-2
Bluetooth SIG
RoHS, REACH, WEEE
EMI and susceptibility (Class B)
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive
2014/53/EU Radio Equipment Directive
EN 55032
IEC/EN 60950
EN 300 328
EN 301 893
EN 301 489-1
EN 301 489-17

Confezione

Software

?no

Kit e Accessori Vari

Ceiling/wall mounting (Mount kit needs to be ordered separately)
?OAW-AP-MNT-B (single pack) or OAW-AP-MNT-B-10 (10 pack) Mounting kit, (Type B19/16 and B215/16) for T shaped spare ceiling rail mounting. Applicable for OmniAccess Stellar Indoor 1101, 12xx and 13xx series.
OAW-AP-MNT-W (single pack) or OAW-AP-MNT-W-10 (10 pack) Mounting kit, Type A wall mount and ceiling mount with screws. Applicable for OmniAccess Stellar Indoor 1101, 12xx and 13xx series.
OAW-AP-MNT-C (single pack) Mounting kit, Type C1 (Open Silhouette) and C2 Flanged Interlude), for other shaped ceiling rail mounting. Applicable for OmniAccess Stellar Indoor 1101, 12xx and 13xx series.

Soluzioni

UCC Sì
